AutoScan-DS-EX Pro(H)
Embrace The 5.0 MP Era

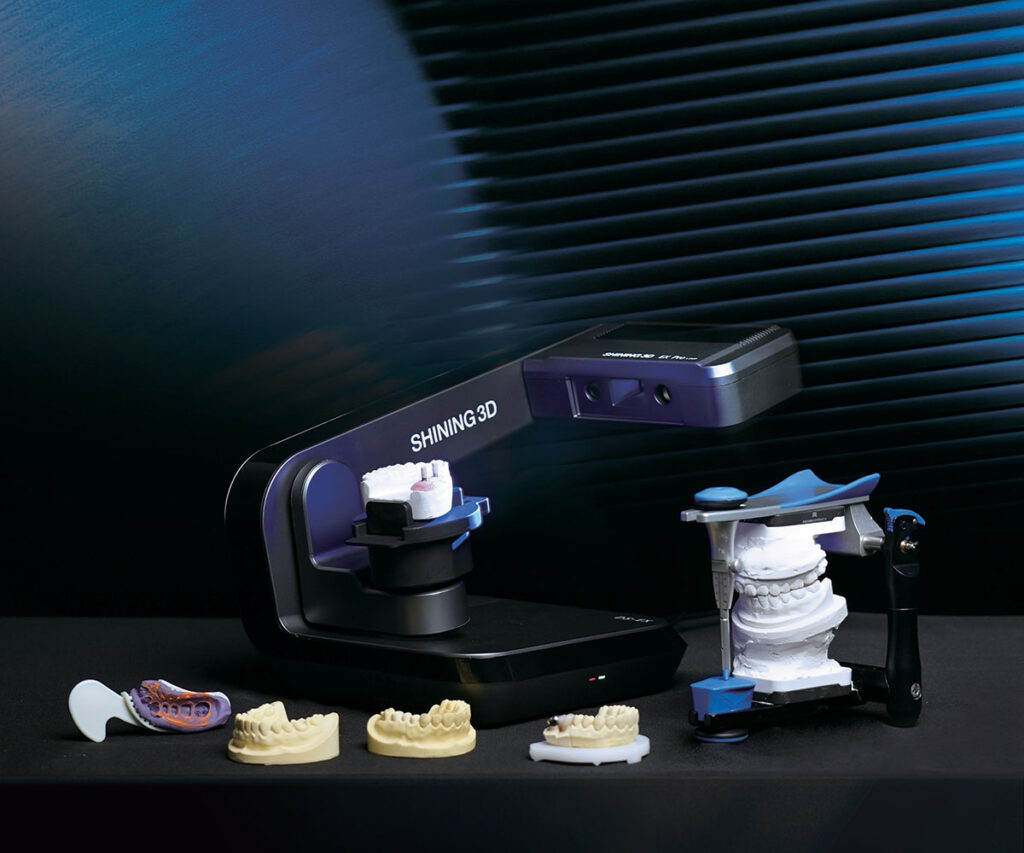

AutoScan-DS-EX Pro(H), developed and manufactured by SHINING 3D, is a 3D dental scanner with powerful functions for multiple applications covering scans of impressions, plaster models, articulators, implant abutments, etc. Its high-resolution cameras, advanced algorithms, and user-friendly interface bring you with superior data quality with optimal experience.
Versatile Application
Implant abutment

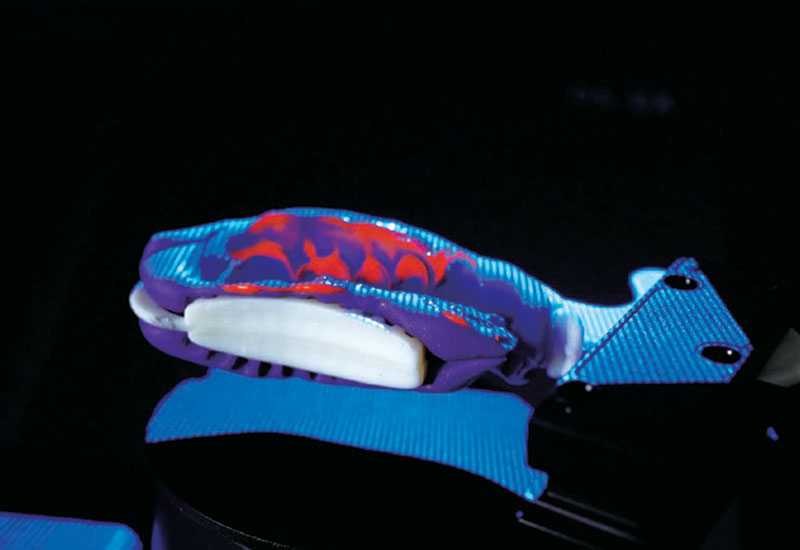

Impression
Model
Texture
Articulator
Full denture
Implant bridge
Scan body

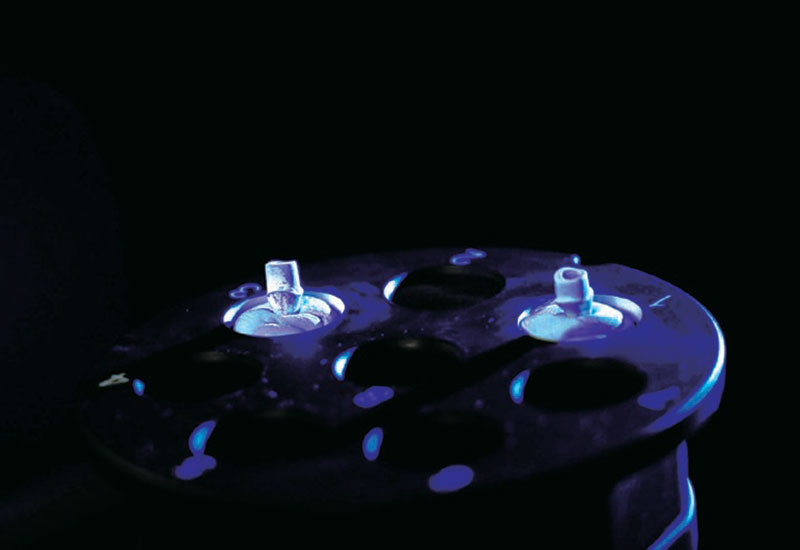

Post and core
Higher, Faster, Easier
Ultra-high Accuracy
Scan accuracy ≤ 8 μm assures reliable scan result, satisfying the requirement of various applications in dental industry completely.
Unparalleled Details
Equipped with dual 5.0 MP high resolution cameras, AutoScan-DS-EX Pro(H) can capture every detail of the components meticulously.
Outstanding Scan Speed
Bite scan: 6.5 seconds
1-4 dies/5-8 dies: 21.5s/25.5s
Upper/Lower jaw scan: 14s
Physical Impression scan: 31s
Flexible Workflow
Set up your own workflow as you prefer, increasing work efficiency like never before, all-in-one and triple tray are available to get complete scan data with less steps.
Backstage Data Processing
Scan and backstage data processing can be carried out simultaneously, making the whole process more efficient.

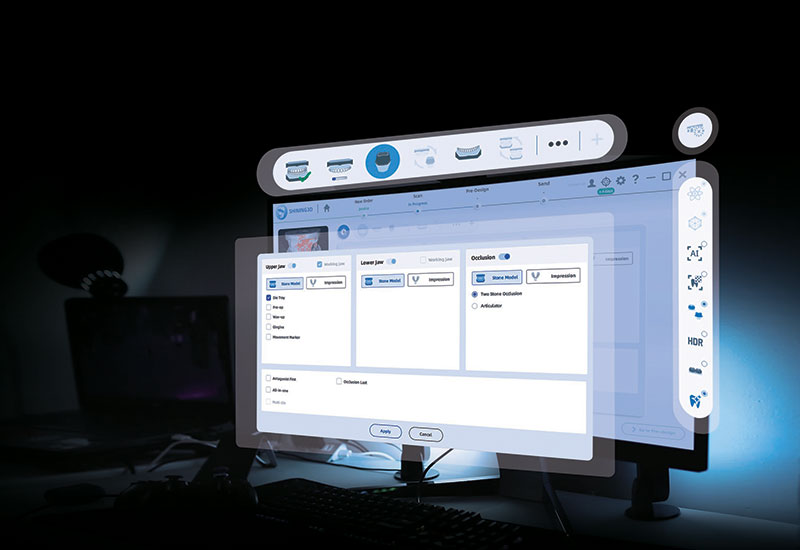

Versatile Scan Modes
The new software associated with AutoScan-DS-EX Pro(H) can support versatile scan modes, including Multi Path Scan, High Quality Scan, AI Scan, Texture Scan, HDR Mode Scan, Reduce High Brightness Scan
Technical specifications
Camera Resolution: 2*5.0 MP
Accuracy: 8um
Scan Time: Support articulator transfer
Output Format: STL, PLY, OBJ
Light Source: Blue Light
Dimension: 420*260*270 mm
Weight: 5.0 Kg
Interface: USB 3.0
Power Supply: DC 24V
